IC-DP, IC-DP_IC - HIGHSIDE SWITCH

IC-DP Description

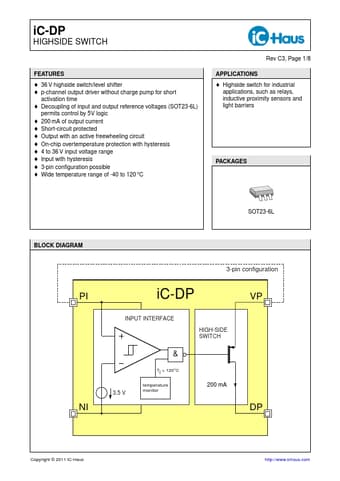

www.DataSheet.co.kr iC-DP HIGHSIDE SWITCH Rev C3, Page 1/8 .
iC-DP is a monolithic highside switch for ohmic, inductive and capacitive loads.

IC-DP Features

* o 36 V highside switch/level shifter o p-channel output driver without charge pump for short activation time o Decoupling of input and output reference voltages (SOT23-6L) permits control by 5V logic o 200 mA of output current o Short-circuit protected o Output with an active freewheeling circuit o

IC-DP Applications

* o Highside switch for industrial applications, such as relays, inductive proximity sensors and light barriers PACKAGES SOT23-6L BLOCK DIAGRAM 3-pin configuration PI iC-DP INPUT INTERFACE HIGH-SIDE SWITCH VP & Tj < 120°C temperature monitor 200 mA 3.5 V NI DP Copyright © 2011 iC-Haus ht

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IC-DP, IC-DP_IC. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IC-DP, IC-DP_IC
Manufacturer
IC-Haus
File Size
286.42 KB
Datasheet
IC-DP_IC-Haus.pdf
Description
HIGHSIDE SWITCH
Note
This datasheet PDF includes multiple part numbers: IC-DP, IC-DP_IC.
Please refer to the document for exact specifications by model.
