IC-DN

LOWSIDE SWITCH

IC-DN Features

* o 36 V lowside switch/level shifter o Decoupling of input and output reference voltages (SOT23-6L) permits control by 5V logic o 200 mA of output current o Short-circuit protected o Output with an active freewheeling circuit o On-chip over-temperature protection with hysteresis o 4 to 36 V input vol

IC-DN General Description

iC-DN is a monolithic lowside switch for ohmic, inductive and capacitive loads. Designed for a wide input voltage range of 4 to 36 V, it is capable of supplying a minimum output current of 200 mA. The output acts as a current source with a low saturation voltage; protection against shortcircuiting i.

IC-DN Datasheet (256.41 KB)

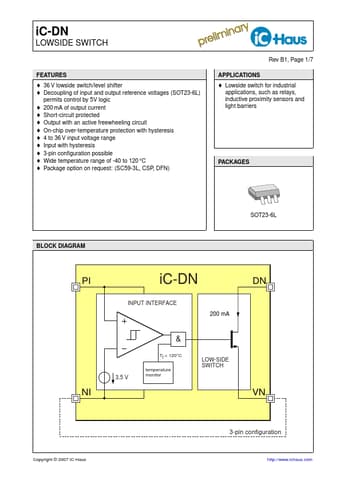

Preview of IC-DN PDF

Datasheet Details

Part number:

IC-DN

Manufacturer:

IC-Haus

File Size:

256.41 KB

Description:

Lowside switch.
iC-DN LOWSIDE SWITCH ar y n i im prel Rev B1, Page 1/7 APPLICATIONS o Lowside switch for industrial applications, such as relays, inductive proximity.
