ICS1493-17 Datasheet - ICST

ICS1493-17 Clock Synthesizer

The ICS1493-17 is a low-power, low-jitter clock synthesizer designed to replace multiple crystals and oscillators in portable audio/video systems. The device generates a 37 MHz processor clock, a 48 MHz USB clock, a fixed 22.5792 MHz audio clock, a selectable 24.576 MHz or 22.5792 MHz audio clock, a.

ICS1493-17 Features

* Extremely low operating current (11 mA) Packaged in 20-pin QFN (Pb-free) Input crystal or clock frequency of 27 MHz Output reference frequency of 27 MHz Fixed output frequencies of 37 MHz, 48 MHz and

ICS1493-17_ICST.pdf

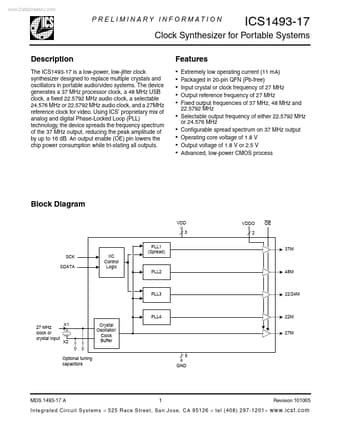

Preview of ICS1493-17 PDF
ICS1493-17 Datasheet Preview Page 2 ICS1493-17 Datasheet Preview Page 3

Datasheet Details

Part number:

ICS1493-17

Manufacturer:

ICST

File Size:

246.65 KB

Description:

Clock synthesizer.
