ICS853210, LVPECL/ECL FANOUT BUFFER

www.DataSheet4U.com Integrated Circuit Systems, Inc.ICS853210 LOW SKEW, DUAL, 1-TO-5 DIFFERENTIAL-TO-2.5V/3.3V LVPECL/ECL FANOUT BUFFER .
The ICS853210 is a low skew, high performance dual 1 - t o -5 Differential-to-2.

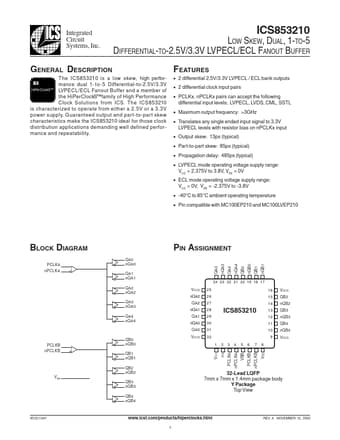

datasheet Preview Page 1 from Datasheet4u.com

ICS853210_ICST.pdf

ICS853210 Datasheet Preview — Preview of ICS853210 PDF

Datasheet Details

Part number:

ICS853210

Manufacturer:

ICST

File Size:

300.09 KB

Description:

LVPECL/ECL FANOUT BUFFER

Features

* 2 differential 2.5V/3.3V LVPECL / ECL bank outputs
* 2 differential clock input pairs
* PCLKx, nPCLKx pairs can accept the following differential input levels: LVPECL, LVDS, CML, SSTL
* Maximum output frequency: >3GHz
* Translates any single ended input sign

Applications

* demanding well defined performance and repeatability. ICS BLOCK DIAGRAM PCLKA nPCLKA QA0 nQA0 QA1 nQA1 QA2 nQA2 QA3 nQA3 QA4 nQA4 PIN ASSIGNMENT nQA3 nQA4 nQB0 nQB1 QA3 QA4 QB0 QB1 24 23 22 21 20 19 18 17 VCCO nQA2 QA2 nQA1 QA1 nQA0 QA0 25 26 27 28 29 30 31 32 1 VCC 16 15 14 VCCO QB2 nQB2 QB3
