IDT74SSTU32864A, IDT74SSTU32864 - 1:1 AND 1:2 REGISTERED BUFFER

IDT

IDT74SSTU32864A Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT74SSTU32864A, IDT74SSTU32864. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IDT74SSTU32864A, IDT74SSTU32864
Manufacturer	IDT
File Size	165.63 KB
Description	1:1 AND 1:2 REGISTERED BUFFER
Datasheet	IDT74SSTU32864_IDT.pdf
Note	This datasheet PDF includes multiple part numbers: IDT74SSTU32864A, IDT74SSTU32864. Please refer to the document for exact specifications by model.

IDT74SSTU32864A Product details

Description

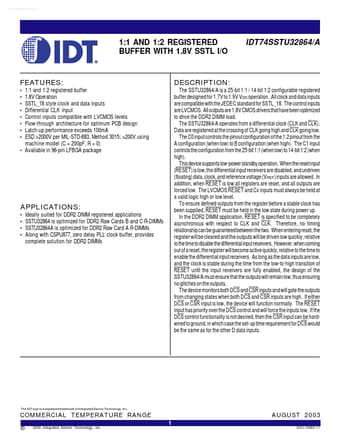

COMMERCIAL TEMPERATURE RANGE 1 c 2003 Integrated Device Technology, Inc.The IDT logo is a registered trademark of Integrated Device Technology, Inc.AUGUST 2003 DSC-5980/17 IDT74SSTU32864/A 1:1 AND 1:2 REGISTERED BUFFER WITH 1.8V SSTL I/O COMMERCIAL TEMPERATURE RANGE FUNCTIONAL BLOCK DIAGRAM (1:2) RESET CLK CLK VREF DCKE 1D C1 R QCKEA QCKEB DODT 1D C1 R QODTA QODTB DCS 1D C1 R QCSA QCSB CSR Dx O 1 1D C1 R QxA QxB TO 10 OTHER CHANNELS 2 IDT74SSTU32864/A 1:1 AND 1:2

Features

1:1 and 1:2 registered buffer 1.8V Operation SSTL_18 style clock and data inputs Differential CLK input Control inputs compatible with LVCMOS levels Flow-through architecture for optimum PCB design Latch-up performance exceeds 100mA ESD >2000V per MIL-STD-883, Method 3015; >200V using machine model (C = 200pF, R = 0).
Available in 96-pin LFBGA package.
