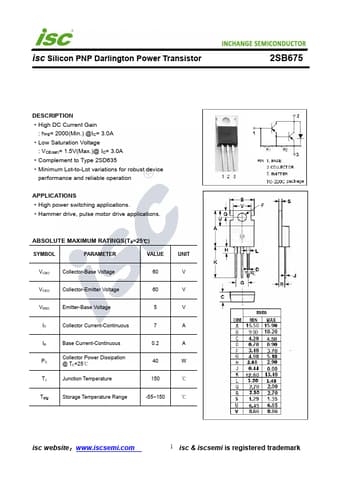

2SB675 Datasheet, Transistor, INCHANGE

✔ 2SB675 Application

High power switching applications.
Hammer drive, pulse motor drive applications. ABSOLUTE MAXIMUM RATINGS

PDF File Details

INCHANGE manufacturer logo

Part number:

2SB675

Manufacturer:

INCHANGE

File Size:

211.67kb

Download:

📄 Datasheet

Description:

Pnp transistor. *High DC Current Gain : hFE= 2000(Min.) @IC= 3.0A *Low Saturation Voltage : VCE(sat)= 1.5V(Max.)@ IC= 3.0A *Complement to Type 2SD635

📥 Download PDF (211.67kb)
