2SC3856 - NPN Transistor

📥 Download Datasheet

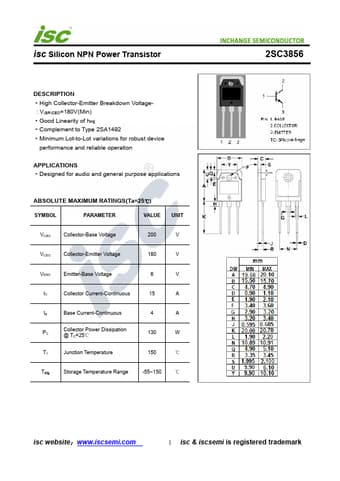

Preview of 2SC3856 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SC3856
Manufacturer INCHANGE
File Size 213.45 KB
Description NPN Transistor
Datasheet download datasheet 2SC3856-INCHANGE.pdf

2SC3856 Product details

Description

High Collector-Emitter Breakdown Voltage- : V(BR)CEO=180V(Min) Good Linearity of hFE Complement to Type 2SA1492 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for audio and general purpose applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 200 V VCEO Collector-Emitter Voltage 180 V VEBO Emitter-Base Voltage 6 V IC Collector Current-Continuous 1
