2SC5242 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2SC5242

Manufacturer:

INCHANGE

File Size:

218.74kb

Download:

📄 Datasheet

Description:

Npn transistor.

  • High Collector Breakdown Voltage- : V(BR)CEO= 230V(Min.)
  • Good Linearity of hFE
  • Complement to Type 2SA1962

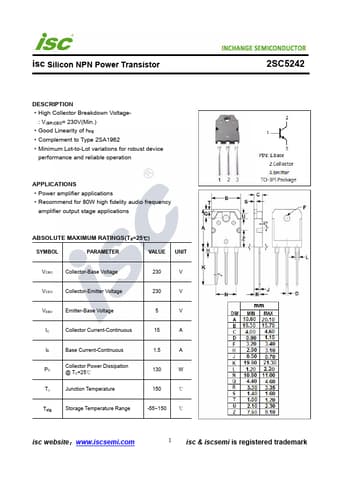

  • Datasheet Preview: 2SC5242 📥 Download PDF (218.74kb)
    Page 2 of 2SC5242

    2SC5242 Application

    • Applications
    • Power amplifier applications
    • Recommend for 80W high fidelity audio frequency amplifier output stage applications ABS
