FDP030N06 N-Channel MOSFET

FDP030N06 Description

isc N-Channel MOSFET Transistor FDP030N06 *.

FDP030N06 Features

* With TO-220 packaging
* High speed switching
* Low gate input resistance
* Standard level gate drive
* Easy to use
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

FDP030N06 Applications

* Power supply
* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 60 V VGSS Gate-Source Voltage ±20 V ID Drain Current-Continuous;@Tc=25℃ 193 A IDM Drain Current-Single Pulsed 772 A PD Total Dissipation 2

📥 Download Datasheet

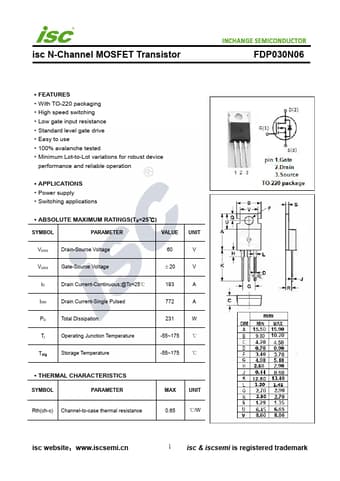

Preview of FDP030N06 PDF
datasheet Preview Page 2

Datasheet Details

Part number
FDP030N06
Manufacturer
INCHANGE
File Size
253.16 KB
Datasheet
FDP030N06-INCHANGE.pdf
Description
N-Channel MOSFET
