FDP032N08, MOSFET

FDP032N08 * N-Channel PowerTrench® MOSFET FDP032N08 N-Channel PowerTrench® MOSFET 75 V, 235 A, 3.2 mΩ November 2013 .
This N-Channel MOSFET is produced using Fairchild Semiconductor’s advanced PowerTrench® process that has been tailored to minimize the on-state resist.

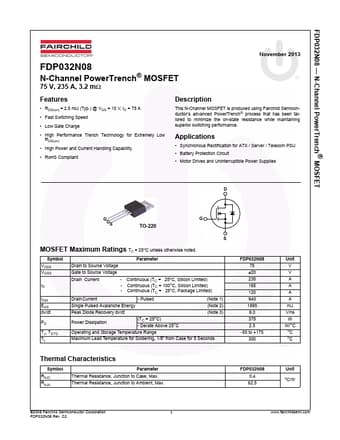

datasheet Preview Page 1 from Datasheet4u.com

FDP032N08-FairchildSemiconductor.pdf

FDP032N08 Datasheet Preview — Preview of FDP032N08 PDF

Datasheet Details

Part number:

FDP032N08

Manufacturer:

Fairchild Semiconductor

File Size:

832.46 KB

Description:

MOSFET

Features

* RDS(on) = 2.5 mΩ (Typ. ) @ VGS = 10 V, ID = 75 A
* Fast Switching Speed
* Low Gate Charge
* High Performance Trench Technology for Extremely Low RDS(on)
* High Power and Current Handling Capability

Applications

* Synchronous Rectification for ATX / Server / Telecom PSU
* Battery Protection Circuit
* Motor Drives and Uninterruptible Power Supplies D GDS TO-220 G S MOSFET Maximum Ratings TC = 25oC unless otherwise noted. Symbol VDSS VGSS ID Drain to Source Voltage Gate to Sour
