FDP030N06, MOSFET

FDP030N06 * N-Channel PowerTrench® MOSFET FDP030N06 N-Channel PowerTrench® MOSFET 60 V, 193 A, 3.2 mΩ November 2013 .
This N-Channel MOSFET is produced using Fairchild Semiconductor’s advanced PowerTrench® process that has been tailored to minimize the on-state resist.

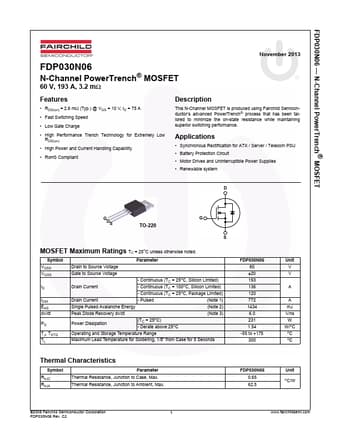

datasheet Preview Page 1 from Datasheet4u.com

FDP030N06-FairchildSemiconductor.pdf

FDP030N06 Datasheet Preview — Preview of FDP030N06 PDF

Datasheet Details

Part number:

FDP030N06

Manufacturer:

Fairchild Semiconductor

File Size:

809.47 KB

Description:

MOSFET

Features

* RDS(on) = 2.6 mΩ (Typ. ) @ VGS = 10 V, ID = 75 A
* Fast Switching Speed
* Low Gate Charge
* High Performance Trench Technology for Extremely Low RDS(on)
* High Power and Current Handling Capability

Applications

* Synchronous Rectification for ATX / Server / Telecom PSU
* Battery Protection Circuit
* Motor Drives and Uninterruptible Power Supplies
* Renewable system D GDS TO-220 G S MOSFET Maximum Ratings TC = 25oC unless otherwise noted. Symbol VDSS VGSS ID IDM EAS dv/
