IXFH320N10T2, N-Channel MOSFET

isc N-Channel MOSFET Transistor IXFH320N10T2 *.

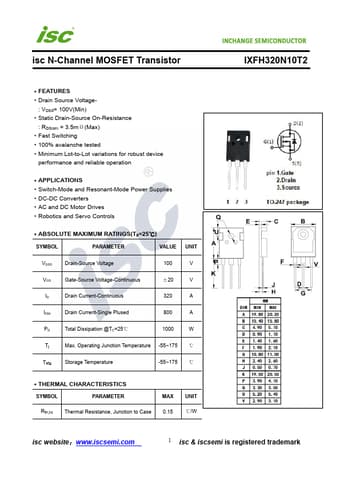

datasheet Preview Page 1 from Datasheet4u.com

IXFH320N10T2-INCHANGE.pdf

IXFH320N10T2 Datasheet Preview — Preview of IXFH320N10T2 PDF

Datasheet Details

Part number:

IXFH320N10T2

Manufacturer:

INCHANGE

File Size:

332.51 KB

Description:

N-Channel MOSFET

Features

* Drain Source Voltage- : VDSS= 100V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 3.5mΩ(Max)
* Fast Switching
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

Applications

* Switch-Mode and Resonant-Mode Power Supplies
* DC-DC Converters
* AC and DC Motor Drives
* Robotics and Servo Controls
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 100 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Curr
