IXFH46N65X2 Datasheet - INCHANGE

IXFH46N65X2, N-Channel MOSFET

isc N-Channel MOSFET Transistor *.

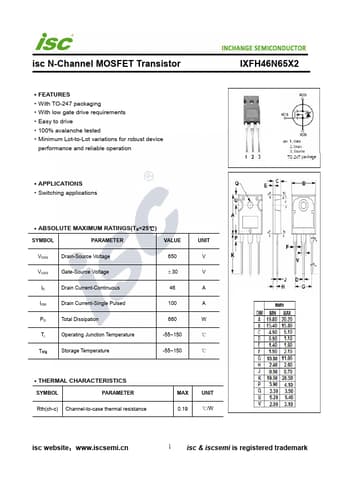

datasheet Preview Page 1 from Datasheet4u.com

IXFH46N65X2-INCHANGE.pdf

IXFH46N65X2 Datasheet Preview — Preview of IXFH46N65X2 PDF

Datasheet Details

Part number:

IXFH46N65X2

Manufacturer:

INCHANGE

File Size:

207.69 KB

Description:

N-Channel MOSFET

Features

* With TO-247 packaging
* With low gate drive requirements
* Easy to drive
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation INCHANGE Semiconductor IXFH46N65X2

Applications

* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 650 VGSS Gate-Source Voltage ±30 ID Drain Current-Continuous 46 IDM Drain Current-Single Pulsed 100 PD Total Dissipation 660 Tj Operating Junction Temperature -55~
