IXFH42N65X2A - N-Channel MOSFET

Datasheet Summary

Features

  • Drain Source Voltage- : VDSS= 650V(Min).
  • Static Drain-Source On-Resistance : RDS(on) = 72mΩ(Max).
  • Fast Switching.
  • 100% avalanche tested.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

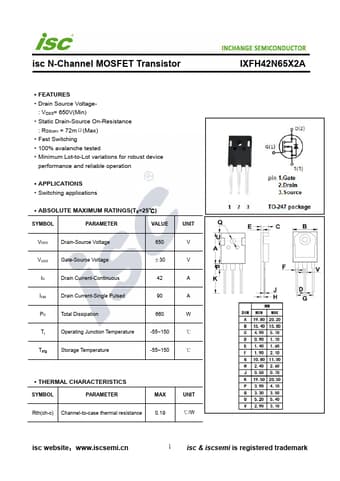

Datasheet preview – IXFH42N65X2A

Datasheet Details

Part number IXFH42N65X2A
Manufacturer INCHANGE
File Size 319.82 KB
Description N-Channel MOSFET
Datasheet download datasheet IXFH42N65X2A Datasheet
Additional preview pages of the IXFH42N65X2A datasheet.

📁 Similar Datasheet

Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text
isc N-Channel MOSFET Transistor INCHANGE Semiconductor IXFH42N65X2A ·FEATURES ·Drain Source Voltage- : VDSS= 650V(Min) ·Static Drain-Source On-Resistance : RDS(on) = 72mΩ(Max) ·Fast Switching ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation ·APPLICATIONS ·Switching applications ·ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 650 V VGSS Gate-Source Voltage ±30 V ID Drain Current-Continuous 42 A IDM Drain Current-Single Pulsed 90 A PD Total Dissipation 660 W Tj Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ ·THERMAL CHARACTERISTICS SYMBOL PARAMETER MAX Rth(ch-c) Channel-to-case thermal resistance 0.
