IXTH130N15T, N-Channel MOSFET

isc N-Channel MOSFET Transistor IXTH130N15T *.

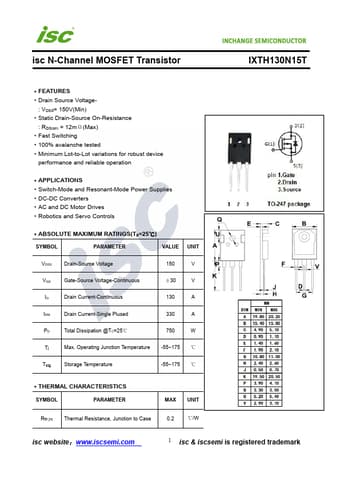

datasheet Preview Page 1 from Datasheet4u.com

IXTH130N15T-INCHANGE.pdf

IXTH130N15T Datasheet Preview — Preview of IXTH130N15T PDF

Datasheet Details

Part number:

IXTH130N15T

Manufacturer:

INCHANGE

File Size:

332.44 KB

Description:

N-Channel MOSFET

Features

* Drain Source Voltage- : VDSS= 150V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 12mΩ(Max)
* Fast Switching
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

Applications

* Switch-Mode and Resonant-Mode Power Supplies
* DC-DC Converters
* AC and DC Motor Drives
* Robotics and Servo Controls
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current-Continuous 1
