Part number:
IXTH30N50L2
Manufacturer:
INCHANGE
File Size:
339.02 KB
Description:
N-channel mosfet.

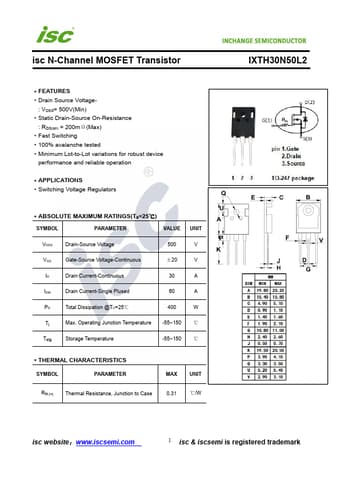

IXTH30N50L2 Datasheet (339.02 KB)
* Drain Source Voltage- : VDSS= 500V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 200mΩ(Max)
* Fast Switching
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation
* APPLICATIONS
* Switching Voltage Regulators
IXTH30N50L2 Datasheet (339.02 KB)
IXTH30N50L2
INCHANGE
339.02 KB
N-channel mosfet.
