IXTH340N04T4, N-Channel MOSFET

isc N-Channel MOSFET Transistor *.

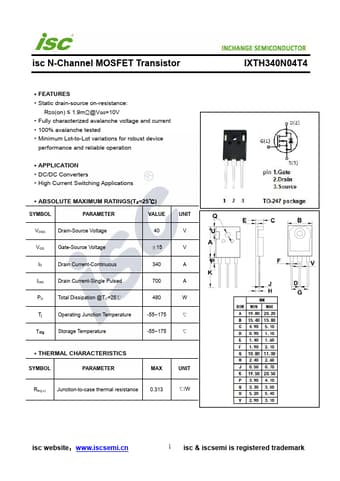

datasheet Preview Page 1 from Datasheet4u.com

IXTH340N04T4-INCHANGE.pdf

IXTH340N04T4 Datasheet Preview — Preview of IXTH340N04T4 PDF

Datasheet Details

Part number:

IXTH340N04T4

Manufacturer:

INCHANGE

File Size:

335.18 KB

Description:

N-Channel MOSFET

Features

* Static drain-source on-resistance: RDS(on) ≤ 1.9mΩ@VGS=10V
* Fully characterized avalanche voltage and current
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage VGS Gate-Source Voltage ID Drain Current-Continuous IDM Drain Current-Single Pulsed 40 V ±15 V 340 A 700 A PD Total Dissipation @TC=25℃ 480 W Tj Operating Junction Temperature -55~
