* International standard package JEDEC TO-247 AD
* Low R DS (on) HDMOSTM process
* Rugged polysilicon gate cell structure
* High commutating dv/dt rating
* Fast switching times Applications
* Switch-mode and resonant-mode power supplies

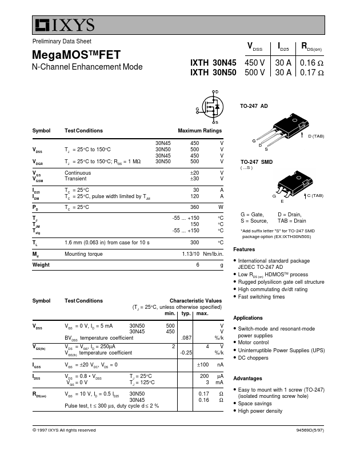

IXTH30N45 Datasheet (36.67 KB)
IXTH30N45
IXYS
36.67 KB
N-channel mosfet.
Preliminary Data Sheet
MegaMOSTMFET
N-Channel Enhancement Mode
VDSS
IXTH 30N45 450 V IXTH 30N50 500 V
ID25
RDS(on)
30 A 0.16 Ω 30 A 0.17 Ω
TO-247.
