Part number:
IXTQ48N20T
Manufacturer:
INCHANGE
File Size:
252.75 KB
Description:
N-channel mosfet.

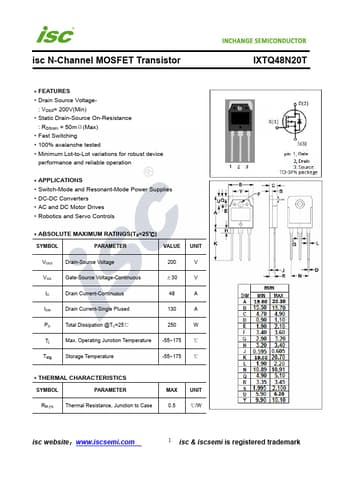

IXTQ48N20T Datasheet (252.75 KB)
* Drain Source Voltage- : VDSS= 200V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 50mΩ(Max)
* Fast Switching
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation
* APPLICATIONS
* Switch-Mode and Resonant-Mode Power
IXTQ48N20T Datasheet (252.75 KB)
IXTQ48N20T
INCHANGE
252.75 KB
N-channel mosfet.
