Part number:
IXTQ110N055P
Manufacturer:
INCHANGE
File Size:
267.77 KB
Description:
N-channelmosfet.

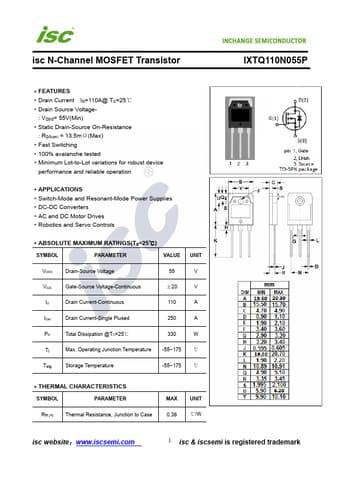

IXTQ110N055P Datasheet (267.77 KB)
* Drain Current ID=110A@ TC=25℃
* Drain Source Voltage- : VDSS= 55V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 13.5mΩ(Max)
* Fast Switching
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation
* APPLICATIONS
IXTQ110N055P Datasheet (267.77 KB)
IXTQ110N055P
INCHANGE
267.77 KB
N-channelmosfet.
