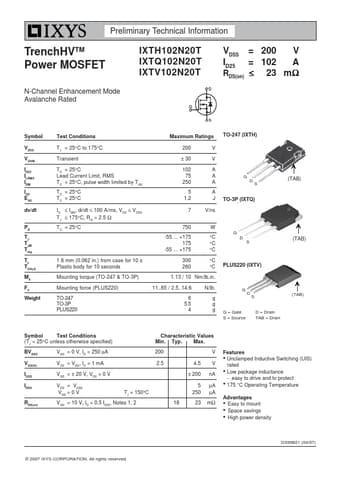

* z Unclamped Inductive Switching (UIS) rated z Low package inductance - easy to drive and to protect z 175 °C Operating Temperature Advantages z Easy to mount z Space savings z High power density © 2007 IXYS CORPORATION, All rights reserved DS99821 (04/07) IXTH102N20T IXTQ102N20T IXTV102N20T Symb
IXTQ102N20T Datasheet (172.64 KB)
IXTQ102N20T
IXYS
172.64 KB
Power mosfet.
Preliminary Technical Information
TrenchHVTM Power MOSFET
N-Channel Enhancement Mode Avalanche Rated
IXTH102N20T IXTQ102N20T IXTV102N20T
VDSS = ID2.
