* l International standard packages l Unclamped Inductive Switching (UIS) rated l Low package inductance - easy to drive and to protect Advantages l Easy to mount l Space savings l High power density © 2006 IXYS All rights reserved DS99207E(10/05) Symbol g fs Ciss Coss Crss td(on) tr td(off) tf Qg(
IXTQ120N20P Datasheet (232.84 KB)
IXTQ120N20P
IXYS
232.84 KB
Polarht power mosfet.

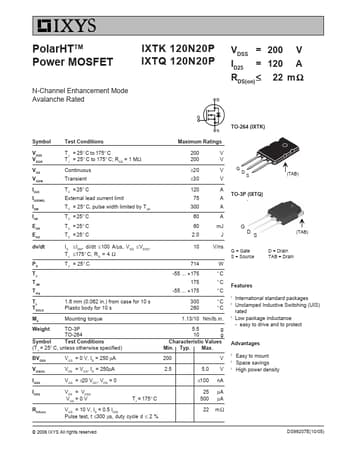

PolarHTTM Power MOSFET
IXTK 120N20P IXTQ 120N20P
N-Channel Enhancement Mode Avalanche Rated
VDSS = ID25 = RDS(on) ≤
200 V 120 A
22 m Ω
TO-264 (IX.
