* Fast Intrinsic Rectifier
* Avalanche Rated
* Low RDS(ON) and QG
* Low Package Inductance Advantages
* High Power Density
* Easy to Mount
* Space Savings Applications
* Switch-Mode and Resonant-Mode Power Supplies
* DC-DC Converters
* Laser Drivers
* AC a

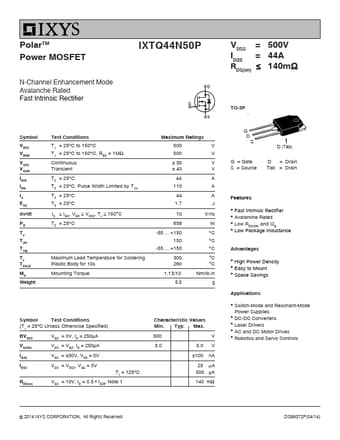

IXTQ44N50P Datasheet (121.42 KB)
IXTQ44N50P
IXYS Corporation
121.42 KB
Polar n-channel mosfet.
PolarTM Power MOSFET
N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Rectifier
IXTQ44N50P
VDSS = ID25 =
RDS(on)
500V 44A 140m
TO-3P
.
