STH130N8F7-2 Datasheet, Mosfet, INCHANGE

STH130N8F7-2 Features

  • Mosfet
  • Drain Current
      –ID= 90A@ TC=25℃
  • Drain Source Voltage- : VDSS= 80V(Min)
  • Static Drain-Source On-Resistance : RDS(on) = 4mΩ(Max)
  • 100% ava

PDF File Details

Part number:

STH130N8F7-2

Manufacturer:

INCHANGE

File Size:

265.85kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

  • Low Drain-Source On-Resistance APPLICATIONS
  • Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAM

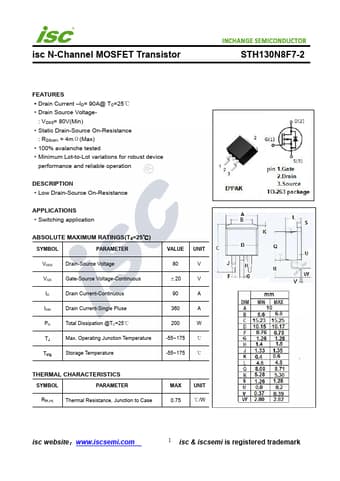

  • Datasheet Preview: STH130N8F7-2 📥 Download PDF (265.85kb)
    Page 2 of STH130N8F7-2

    STH130N8F7-2 Application

    • Applications
    • Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Volta
