STH140N6F7-2

N-Channel MOSFET

STH140N6F7-2 Features

* Drain Current

* ID= 70A@ TC=25℃

* Drain Source Voltage- : VDSS= 60V(Min)

* Static Drain-Source On-Resistance : RDS(on) = 3.5mΩ(Max)

* 100% avalanche tested

* Minimum Lot-to-Lot variations for robust device performance and reliable operation DESCRIPTION

* Low Drain-Source

STH140N6F7-2 General Description


*Low Drain-Source On-Resistance APPLICATIONS
*Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current-Continuous IDM Drain Current-Single Pluse PD Total Dissipation @TC=25℃ TJ Max. O.

STH140N6F7-2 Datasheet (265.39 KB)

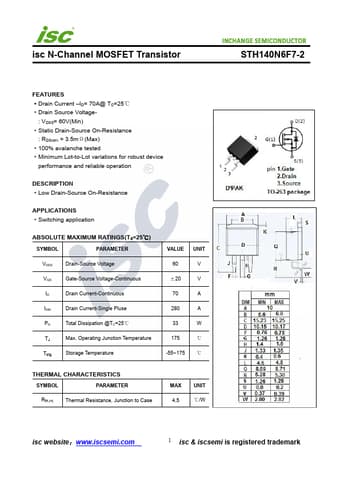

Preview of STH140N6F7-2 PDF

Datasheet Details

Part number:

STH140N6F7-2

Manufacturer:

INCHANGE

File Size:

265.39 KB

Description:

N-channel mosfet.
