STH140N6F7-6, STH140N6F7-2 - N-CHANNEL POWER MOSFET

STMicroelectronics

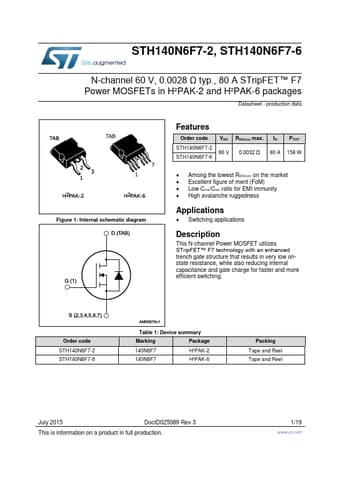

STH140N6F7-6 Datasheet Preview — This datasheet PDF includes multiple part numbers: STH140N6F7-6, STH140N6F7-2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	STH140N6F7-6, STH140N6F7-2
Manufacturer	STMicroelectronics ↗
File Size	696.11 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STH140N6F7-2-STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STH140N6F7-6, STH140N6F7-2. Please refer to the document for exact specifications by model.

STH140N6F7-6 Product details

Description

This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching.

Features

Order code STH140N6F7-2 STH140N6F7-6 VDS 60 V RDS(on) max. 0.0032 Ω ID 80 A PTOT 158 W.
Among the lowest RDS(on) on the market.
Excellent figure of merit (FoM).
Low Crss/Ciss ratio for EMI immunity.
High avalanche ruggedness.
