STH140N6F7-2

N-CHANNEL POWER MOSFET

STH140N6F7-2 Features

* Order code STH140N6F7-2 STH140N6F7-6 VDS 60 V RDS(on) max. 0.0032 Ω ID 80 A PTOT 158 W

* Among the lowest RDS(on) on the market

* Excellent figure of merit (FoM)

* Low Crss/Ciss ratio for EMI immunity

* High avalanche ruggedness Applications

* Switching applications Descrip

STH140N6F7-2 General Description

This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching. Order code STH140N6F7-2 STH140N6F7-6 Table 1: Device su.

STH140N6F7-2 Datasheet (696.11 KB)

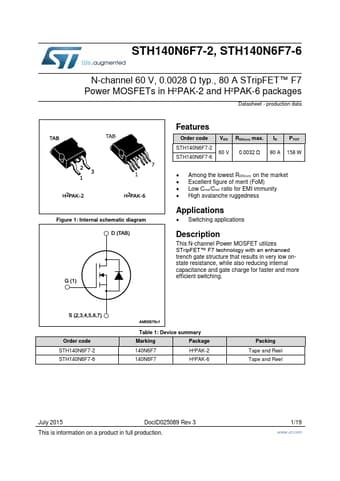

Preview of STH140N6F7-2 PDF

Datasheet Details

Part number:

STH140N6F7-2

Manufacturer:

STMicroelectronics ↗

File Size:

696.11 KB

Description:

N-channel power mosfet.
STH140N6F7-2, STH140N6F7-6 N-channel 60 V, 0.0028 Ω typ., 80 A STripFET™ F7 Power MOSFETs in H²PAK-2 and H²PAK-6 packages Datasheet - production data.
