STH110N10F7-2 Datasheet, Mosfet, INCHANGE

STH110N10F7-2 Features

  • Mosfet
  • Drain Current
      –ID= 110A@ TC=25℃
  • Drain Source Voltage- : VDSS= 100V(Min)
  • Static Drain-Source On-Resistance : RDS(on) = 6.5mΩ(Max)
  • 100%

PDF File Details

Part number:

STH110N10F7-2

Manufacturer:

INCHANGE

File Size:

264.53kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

  • Low Drain-Source On-Resistance APPLICATIONS
  • Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAM

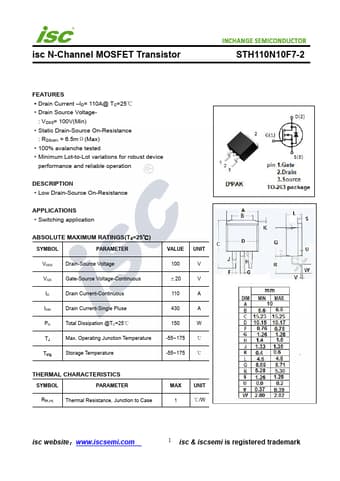

  • Datasheet Preview: STH110N10F7-2 📥 Download PDF (264.53kb)
    Page 2 of STH110N10F7-2

    STH110N10F7-2 Application

    • Applications
    • Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Volta
