STP34NM60ND N-Channel MOSFET

STP34NM60ND Description

isc N-Channel MOSFET Transistor STP34NM60ND .

STP34NM60ND Features

* Drain Current
* ID=29A@ TC=25ā„ƒ
* Drain Source Voltage- : VDSS= 600V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 110mĪ©(Max)
* 100% avalanche tested

STP34NM60ND Applications

* Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25ā„ƒ) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current-Continuous IDM Drain Current-Single Pluse PD Total Dissipation @TC=25ā„ƒ TJ Max. Operating Junction Temperature Tstg Storage Tempe

📥 Download Datasheet

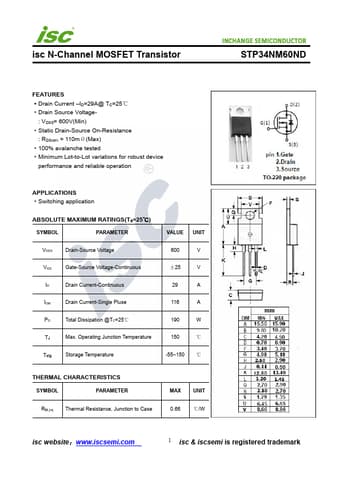

Preview of STP34NM60ND PDF
datasheet Preview Page 2

Datasheet Details

Part number
STP34NM60ND
Manufacturer
INCHANGE
File Size
271.45 KB
Datasheet
STP34NM60ND-INCHANGE.pdf
Description
N-Channel MOSFET
