STP5NM60 Datasheet, Mosfet, INCHANGE

STP5NM60 Features

  • Mosfet
  • Drain Current
      –ID= 8A@ TC=25℃
  • Drain Source Voltage- : VDSS= 600V(Min)
  • Static Drain-Source On-Resistance : RDS(on) = 1Ω(Max)
  • 100% aval

PDF File Details

Part number:

STP5NM60

Manufacturer:

INCHANGE

File Size:

270.73kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

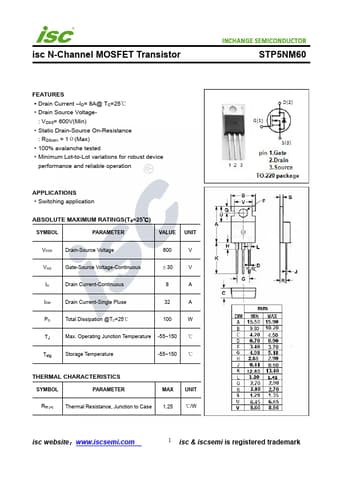

Datasheet Preview: STP5NM60 📥 Download PDF (270.73kb)
Page 2 of STP5NM60

STP5NM60 Application

  • Applications
  • Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 600 V VG
