STP8NM60FP N-Channel MOSFET

INCHANGE

Description

isc N-Channel MOSFET Transistor STP8NM60FP .

📥 Download Datasheet

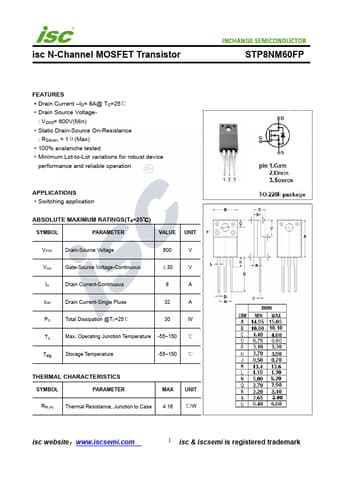

STP8NM60FP Datasheet Preview — Preview of STP8NM60FP PDF

Datasheet Specifications

Part number: STP8NM60FP
Manufacturer: INCHANGE
File Size: 262.10 KB
Datasheet: STP8NM60FP-INCHANGE.pdf
Description: N-Channel MOSFET

Features

* Drain Current
* ID= 8A@ TC=25℃
* Drain Source Voltage- : VDSS= 600V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 1Ω(Max)
* 100% avalanche tested

Applications

* Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 600 V VGS Gate-Source Voltage-Continuous ±30 V ID Drain Current-Continuous 8 A IDM Drain Current-Single Pluse 32 A PD Total Dissipation @TC=25℃ 30 W TJ Max. Ope
