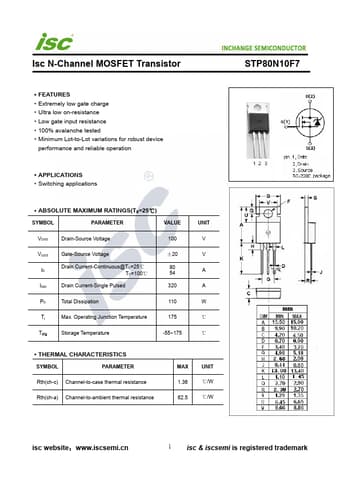

STP80N10F7 Datasheet, Mosfet, INCHANGE

STP80N10F7 Features

• Mosfet
• Extremely low gate charge
• Ultra low on-resistance
• Low gate input resistance
• 100% avalanche tested
• Minimum Lot-to-Lot variations for robust d

PDF File Details

Part number:

STP80N10F7

Manufacturer:

INCHANGE

File Size:

201.42kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

STP80N10F7 Application

• Applications
• Switching applications
• ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 100
