STP8NK80ZFP Datasheet, Mosfet, INCHANGE

PDF File Details

Part number:

STP8NK80ZFP

Manufacturer:

INCHANGE

File Size:

196.77kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

  • Drain Current ID=6.2A@ TC=25℃
  • Drain Source Voltage- : VDSS=800V(Min)
  • 100% avalanche tested
  • Fast S

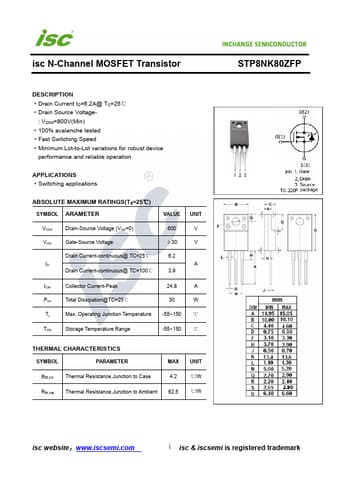

  • Datasheet Preview: STP8NK80ZFP 📥 Download PDF (196.77kb)
    Page 2 of STP8NK80ZFP

    STP8NK80ZFP Application

    • Applications
    • Switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 600
