STU8N65M5 N-Channel MOSFET

STU8N65M5 Description

isc N-Channel MOSFET Transistor STU8N65M5 .

STU8N65M5 Features

* Drain Current
* ID= 7A@ TC=25ā„ƒ
* Drain Source Voltage- : VDSS= 650V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 60mĪ©(Max)
* 100% avalanche tested

STU8N65M5 Applications

* Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25ā„ƒ) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current-Continuous IDM Drain Current-Single Pluse PD Total Dissipation @TC=25ā„ƒ TJ Max. Operating Junction Temperature Tstg Storage Tempe

📥 Download Datasheet

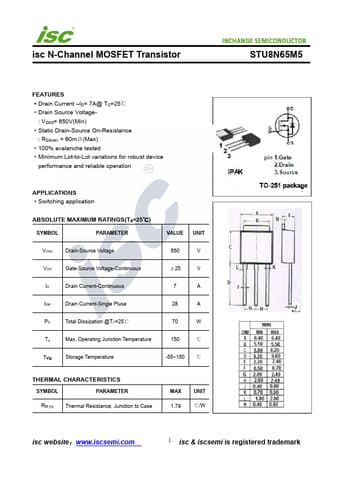

Preview of STU8N65M5 PDF
datasheet Preview Page 2

Datasheet Details

Part number
STU8N65M5
Manufacturer
INCHANGE
File Size
283.74 KB
Datasheet
STU8N65M5-INCHANGE.pdf
Description
N-Channel MOSFET
