TTD1409B Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

TTD1409B

Manufacturer:

INCHANGE

File Size:

197.82kb

Download:

📄 Datasheet

Description:

Npn transistor.

  • Collector  –Emitter Breakdown Voltage  – : V(BR)CEO = 400V(Min)
  • High DC Current Gain

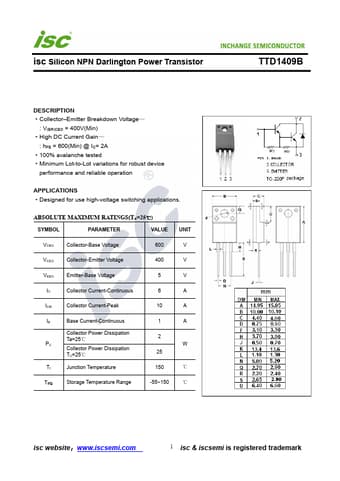

  • Datasheet Preview: TTD1409B 📥 Download PDF (197.82kb)
    Page 2 of TTD1409B Page 3 of TTD1409B

    TTD1409B Application

    • Applications
    • Designed for use high-voltage switching applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO
