TTD135N68A 68V N-Channel Trench MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

TTD135N68A Wuxi Unigroup Microelectronics CO.,LTD.68V N-Channel Trench MOSFET(Preliminary) *General .
Product Summary. Trench Power technology. Low RDS(ON). Low Gate Charge. Optimized for fast-switching applications VDS ID (at VG.

📥 Download Datasheet

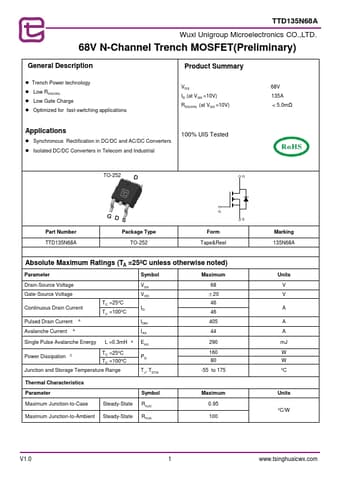

Preview of TTD135N68A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
TTD135N68A
Manufacturer
Unigroup
File Size
715.89 KB
Datasheet
TTD135N68A-Unigroup.pdf
Description
68V N-Channel Trench MOSFET

Applications

* VDS ID (at VGS =10V) RDS(ON) (at VGS =10V) 68V 135A < 5.0mΩ Applications
* Synchronous Rectification in DC/DC and AC/DC Converters
* Isolated DC/DC Converters in Telecom and Industrial 100% UIS Tested TO-252 Part Number TTD135N68A Package Type TO-252 Form Tape&Reel Absolute Maximum
