TTD115N08A 85V N-Channel Trench MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

TTD115N08A Wuxi Unigroup Microelectronics CO.,LTD.85V N-Channel Trench MOSFET *General .
Product Summary. Trench Power technology. Low RDS(ON). Low Gate Charge. Optimized for fast-switching applications VDS ID (at VG.

📥 Download Datasheet

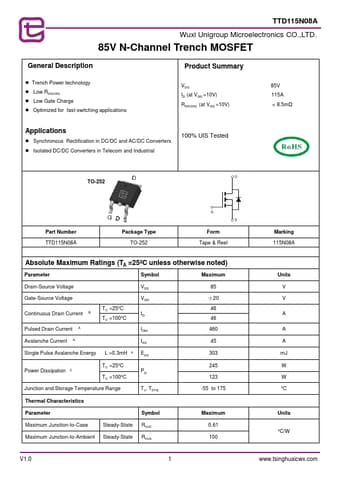

Preview of TTD115N08A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
TTD115N08A
Manufacturer
Unigroup
File Size
766.59 KB
Datasheet
TTD115N08A-Unigroup.pdf
Description
85V N-Channel Trench MOSFET

Applications

* VDS ID (at VGS =10V) RDS(ON) (at VGS =10V) 85V 115A < 8.5mΩ Applications
* Synchronous Rectification in DC/DC and AC/DC Converters
* Isolated DC/DC Converters in Telecom and Industrial 100% UIS Tested TO-252 Part Number TTD115N08A Package Type TO-252 Form Tape & Reel Absolute Maximu
