IS42S16400A Datasheet - ISSI

IS42S16400A 1 Meg Bits x 16 Bits x 4 Banks (64-MBIT) SYNCHRONOUS DYNAMIC RAM

A0-A11 BA0, BA1 I/O0 to I/O15 CLK CKE CS RAS CAS Address Input Bank Select Address Data I/O System Clock Input Clock Enable Chip Select Row Address Strobe Command Column Address Strobe Command WE LDQM UDQM Vcc GND VccQ GNDQ NC Write Enable Lower Bye, Input/Output Mask Upper Bye, Input/Output Mask P.

IS42S16400A Features

* Clock frequency:166, 133, 100 MHz

* Fully synchronous; all signals referenced to a positive clock edge

* Internal bank for hiding row access/precharge

* Single 3.3V power supply

* LVTTL interface

* Programmable burst length

* (1, 2, 4, 8, ful

IS42S16400A_ISSI.pdf

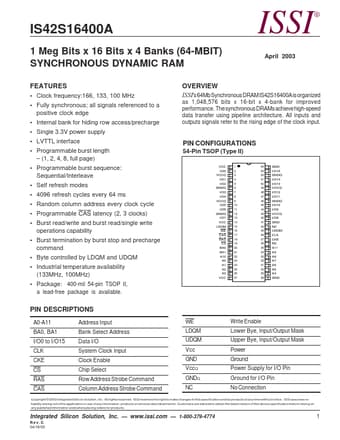

IS42S16400A Datasheet Preview — Preview of IS42S16400A PDF

Datasheet Details

Part number:

IS42S16400A

Manufacturer:

ISSI

File Size:

472.39 KB

Description:

1 meg bits x 16 bits x 4 banks (64-mbit) synchronous dynamic ram.
