IS42S16400B

1 Meg Bits x 16 Bits x 4 Banks (64-MBIT) SYNCHRONOUS DYNAMIC RAM

IS42S16400B Features

* Clock frequency: 166, 143 MHz

* Fully synchronous; all signals referenced to a positive clock edge

* Internal bank for hiding row access/precharge

* Single 3.3V power supply

* LVTTL interface

* Programmable burst length

* (1, 2, 4, 8, full pa

IS42S16400B General Description

A0-A11 BA0, BA1 DQ0 to DQ15 CLK CKE CS RAS CAS Address Input Bank Select Address Data I/O System Clock Input Clock Enable Chip Select Row Address Strobe Command Column Address Strobe Command WE LDQM UDQM VDD GND VDDQ GNDQ NC Write Enable Lower Bye, Input/Output Mask Upper Bye, Input/Output Mask Pow.

IS42S16400B Datasheet (472.11 KB)

Rating: 1 ★ (2 votes)

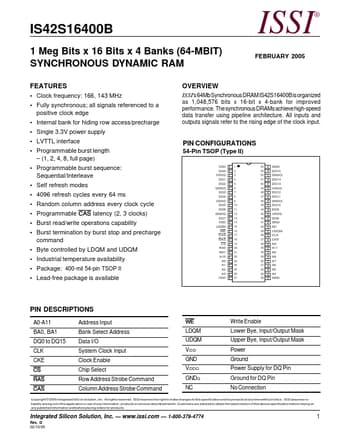

Preview of IS42S16400B PDF

Datasheet Details

Part number:

IS42S16400B

Manufacturer:

ISSI

File Size:

472.11 KB

Description:

1 meg bits x 16 bits x 4 banks (64-mbit) synchronous dynamic ram.
