IS42S16400B1 Datasheet - ISSI

1 Meg Bits x 16 Bits x 4 Banks (64-MBIT) SYNCHRONOUS DYNAMIC RAM

IS42S16400B1 Features

* Clock frequency: 133 MHz

* Fully synchronous; all signals referenced to a positive clock edge

* Internal bank for hiding row access/precharge

* Single 3.3V power supply

* LVTTL interface

* Programmable burst length

* (1, 2, 4, 8, full page)

IS42S16400B1 General Description

A0-A11 BA0, BA1 DQ0 to DQ15 CLK CKE CS RAS CAS Address Input Bank Select Address Data I/O System Clock Input Clock Enable Chip Select Row Address Strobe Command Column Address Strobe Command WE LDQM UDQM VDD GND VDDQ GNDQ NC Write Enable Lower Bye, Input/Output Mask Upper Bye, Input/Output Mask Pow.

IS42S16400B1 Datasheet (468.71 KB)

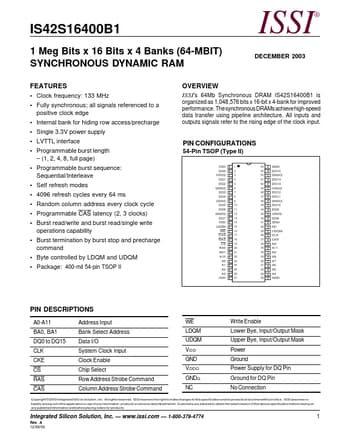

IS42S16400B1 Datasheet Preview — Preview of IS42S16400B1 PDF

Datasheet Details

Part number:

IS42S16400B1

Manufacturer:

ISSI

File Size:

468.71 KB

Description:

1 meg bits x 16 bits x 4 banks (64-mbit) synchronous dynamic ram.
