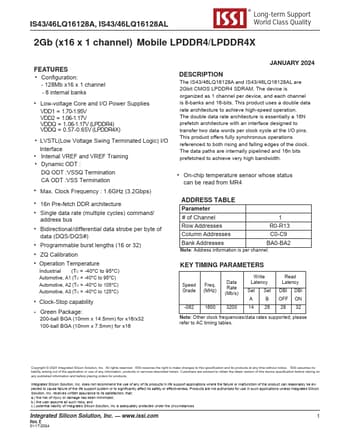

IS46LQ16128AL, IS43LQ16128A Datasheet - ISSI

IS46LQ16128AL 2Gb Mobile LPDDR4/LPDDR4X

The IS43/46LQ16128A and IS43/46LQ16128AL are 2Gbit CMOS LPDDR4 SDRAM. The device is organized as 1 channel per device, and each channel is 8-banks and 16-bits. This product uses a double data rate architecture to achieve high-speed operation. The double data rate architecture is essentially a 16N pr.

IS46LQ16128AL Features

* Configuration: - 128Mb x16 x 1 channel - 8 internal banks

* Low-voltage Core and I/O Power Supplies VDD1 = 1.70-1.95V VDD2 = 1.06-1.17V VDDQ = 1.06-1.17V (LPDDR4) VDDQ = 0.57-0.65V (LPDDR4X)

* LVSTL(Low Voltage Swing Terminated Logic) I/O Interface

* Internal VREF a

IS43LQ16128A-ISSI.pdf
