IS46LQ16256A

4Gb Mobile LPDDR4/LPDDR4X

IS46LQ16256A Features

* Configuration: - 256Mb x16 x 1 channel - 128Mb x 16 x 2 channels - 8 internal banks per channel

* Low-voltage Core and I/O Power Supplies VDD1 = 1.70-1.95V VDD2 = 1.06-1.17V VDDQ = 1.06-1.17V (LPDDR4) VDDQ = 0.57-0.65V (LPDDR4X)

* LVSTL(Low Voltage Swing Terminated Logic) I

IS46LQ16256A General Description

The IS43/46LQ16256A/AL and IS43/46LQ32128A/AL are 4Gbit CMOS LPDDR4 SDRAM. The device is organized as 1/2 channels per device, and each channel is 8-banks and 16-bits. This product uses a double data rate architecture to achieve high-speed operation. The double data rate architecture is essentially .

IS46LQ16256A Datasheet (2.78 MB)

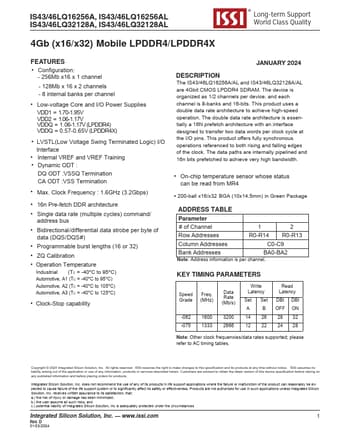

Preview of IS46LQ16256A PDF

Datasheet Details

Part number:

IS46LQ16256A

Manufacturer:

ISSI

File Size:

2.78 MB

Description:

4gb mobile lpddr4/lpddr4x.
IS43/46LQ16256A, IS43/46LQ16256AL IS43/46LQ32128A, IS43/46LQ32128AL ® Long-term Support World Class Quality 4Gb (x16/x32) Mobile LPDDR4/LPDDR4X FEA.
