IS61WV25632ALS, IS61WV25632ALL 256K x 32 HIGH-SPEED ASYNCHRONOUS CMOS STATIC RAM

IS61WV25632ALS Description

IS61WV25632ALL/ALS IS61WV25632BLL/BLS IS64WV25632BLL/BLS 256K x 32 HIGH-SPEED ASYNCHRONOUS CMOS STATIC RAM WITH 3.3V SUPPLY MAY 2023 .
The ISSI IS61WV25632Axx/Bxx and IS64WV25632Bxx are high-speed, 8M-bit static RAMs organized as 256K words by 32 bits.

IS61WV25632ALS Features

* High-speed access times: 8, 10, 20 ns
* High-performance, low-power CMOS process
* Multiple center power and ground pins for greater noise immunity
* Easy memory expansion with CE and OE options
* CE power-down
* Fully static operation: no clock or r

IS61WV25632ALS Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IS61WV25632ALS, IS61WV25632ALL. Please refer to the document for exact specifications by model.

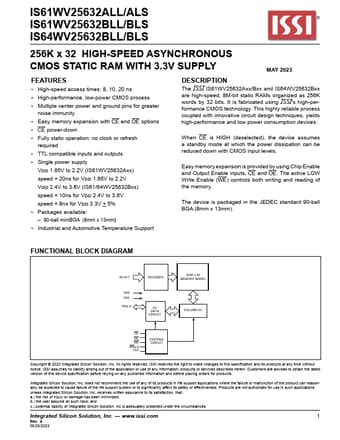

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS61WV25632ALS, IS61WV25632ALL
Manufacturer
ISSI
File Size
388.80 KB
Datasheet
IS61WV25632ALL-ISSI.pdf
Description
256K x 32 HIGH-SPEED ASYNCHRONOUS CMOS STATIC RAM
Note
This datasheet PDF includes multiple part numbers: IS61WV25632ALS, IS61WV25632ALL.
Please refer to the document for exact specifications by model.
