IXFE23N100 Single MOSFET

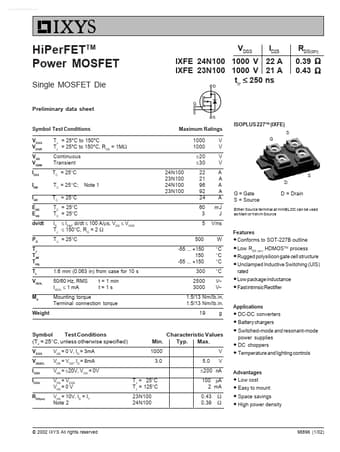

www.DataSheet4U.com HiPerFETTM Power MOSFET Single MOSFET Die Preliminary data sheet Symbol Test Conditions VDSS VDGR VGS VGSM ID25 IDM IAR EAR EAS dv/dt PD TJ TJM Tstg TL VISOL Md Weight 1.6 mm (0.063 in) from case for 10 s 50/60 Hz, RMS IISOL ≤ 1 mA t = 1 min t=1s TJ = 25°C to 150°C TJ = 25°C to 150°C, RGS = 1MΩ Continuous Transient TC = 25°C T C = 25 ° C; TC = 25°C TC = 25°C TC = 25°C IS ≤ IDM, di/dt ≤ 100 A/µs, VDD ≤ VDSS TJ ≤ 150°C, RG = 2 Ω TC = 25°C Note 1 VDSS ID25 RDS(on) 0.39 Ω 0.4.

IXFE23N100 Features

* Conforms to SOT-227B outline

* Low RDS (on) HDMOSTM process

* Rugged polysilicon gate cell structure

* Unclamped Inductive Switching (UIS) rated

* Low package inductance

* Fast intrinsic Rectifier Applications

* DC-DC converters Mounting t
