IXFX60N55Q2 Datasheet - IXYS Corporation

IXFX60N55Q2 - Power MOSFET

Advanced Technical Information HiPerFETTM Power MOSFETs Q-Class IXFK 60N55Q2 IXFX 60N55Q2 VDSS ID25 RDS(on) = = = 550 V 60 A 88 mΩ N-Channel Enhancement Mode Avalanche Rated, High dv/dt, Low Qg Low intrinsic Rg, low trr trr ≤ 250 ns Symbol VDSS VDGR VGS VGSM ID25 IDM IAR EAR EAS dv/dt PD TJ TJM Tstg TL Md Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGS = 1 MΩ Continuous Transient TC = 25°C TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C TC = 25°C IS ≤ IDM, di

IXFX60N55Q2 Features

* z Symbol Test Conditions Characteristic Values (TJ = 25°C, unless otherwise specified) min. typ. max. 550 2.0 4.5 ± 200 TJ = 25°C TJ = 125°C 50 2 V V nA µA mA z z VDSS VGS(th) IGSS IDSS RDS(on) VGS = 0 V, ID = 3mA VDS = VGS, ID = 8 mA VGS = ±20 VDC, VDS = 0 VDS = VDSS VGS = 0 V z z Double me

IXFX60N55Q2_IXYSCorporation.pdf

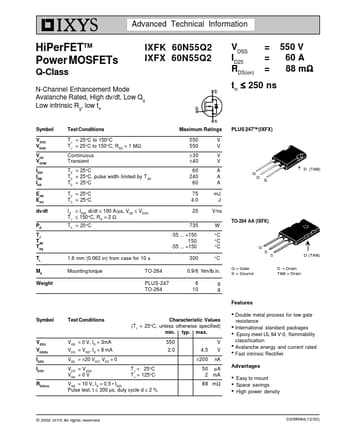

Preview of IXFX60N55Q2 PDF
IXFX60N55Q2 Datasheet Preview Page 2

Datasheet Details

Part number:

IXFX60N55Q2

Manufacturer:

IXYS Corporation

File Size:

92.58 KB

Description:

Power mosfet.
