IXFX64N50Q3 - N-Channel MOSFET Transistor

Inchange Semiconductor

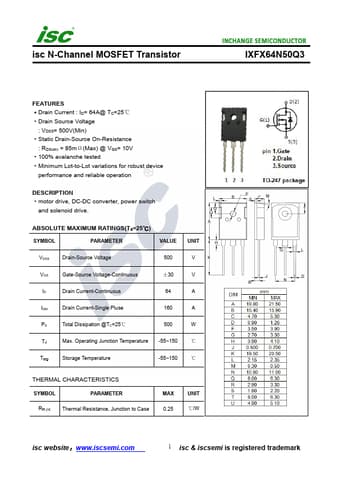

IXFX64N50Q3 Datasheet Preview — Preview of IXFX64N50Q3 PDF

Datasheet Details

Part number	IXFX64N50Q3
Manufacturer	Inchange Semiconductor
File Size	346.69 KB
Description	N-Channel MOSFET Transistor
Datasheet	IXFX64N50Q3-InchangeSemiconductor.pdf

IXFX64N50Q3 Product details

Description

motor drive, DC-DC converter, power switch and solenoid drive.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 500 V VGS Gate-Source Voltage-Continuous ±30 V ID Drain Current-Continuous 64 A IDM Drain Current-Single Pluse 160 A PD Total Dissipation @TC=25℃ 500 W TJ Max.Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance, Junc

Features

Drain Current : ID= 64A@ TC=25℃.
Drain Source Voltage : VDSS= 500V(Min).
Static Drain-Source On-Resistance : RDS(on) = 85mΩ(Max) @ VGS= 10V.
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
