IXFK180N07 Datasheet, Transistor, Inchange Semiconductor

IXFK180N07 Features

  • Transistor
  • Drain Current : ID= 180A@ TC=25℃
  • Drain Source Voltage : VDSS= 70V(Min)
  • Static Drain-Source On-Resistance : RDS(on) = 6mΩ(Max) @ VGS= 10V
  • 100% avalanc

PDF File Details

Part number:

IXFK180N07

Manufacturer:

Inchange Semiconductor

File Size:

332.49kb

Download:

📄 Datasheet

Description:

N-channel mosfet transistor.

  • motor drive, DC-DC converter, power switch and solenoid drive. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE

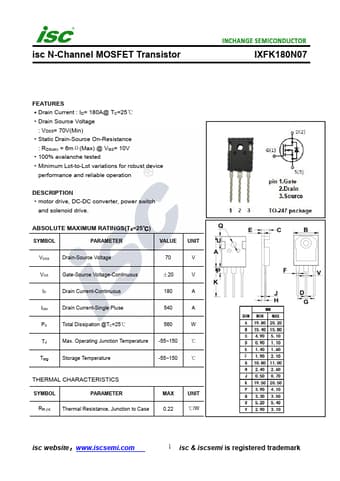

  • Datasheet Preview: IXFK180N07 📥 Download PDF (332.49kb)
    Page 2 of IXFK180N07

    IXFK180N07 Application

    • Applications of our products. ISC products are intended for usage in general electronic equipment. The products are not designed for use in equipmen
