IXGH50N60A Datasheet - IXYS Corporation

IXGH50N60A - HiPerFAST IGBT

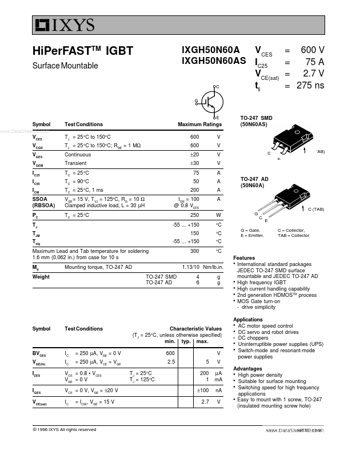

HiPerFASTTM IGBT Surface Mountable IXGH50N60A VCES IXGH50N60AS IC25 VCE(sat) tfi = 600 V = 75 A = 2.7 V = 275 ns Symbol www.DataSheet4U.com Test Conditions TJ = 25 °C to 150°C TJ = 25 °C to 150°C; RGE = 1 MΩ Continuous Transient TC = 25 °C TC = 90 °C TC = 25 °C, 1 ms VGE = 15 V, T VJ = 125°C, RG = 10 Ω Clamped inductive load, L = 30 µH TC = 25 °C Maximum Ratings 600 600 ±20 ±30 75 50 200 ICM = 100 @ 0.8 VCES 250 -55 +150 150 -55 +150 300 V V V V A A A A TO-247 SMD (50N60AS) VCES VCGR VG

IXGH50N60A Features

* l International standard packages JEDEC TO-247 SMD surface mountable and JEDEC TO-247 AD l High frequency IGBT l High current handling capability l 2nd generation HDMOSTM process l MOS Gate turn-on - drive simplicity Applications l AC motor speed control l DC servo and robot drives DC choppers l Uni
