IXGH50N90B2D1 HiPerFAST IGBT

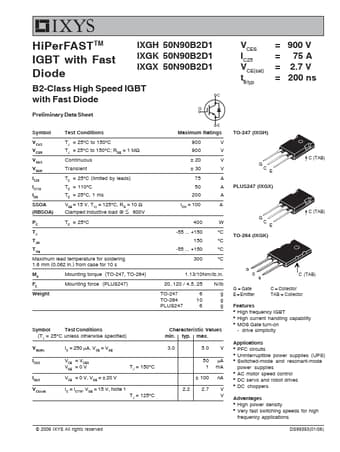

w w w . D a t a S h e e t 4 U . n e t HiPerFASTTM IGBT with Fast Diode IXGH 50N90B2D1 IXGK 50N90B2D1 IXGX 50N90B2D1 B2-Class High Speed IGBT with Fast Diode Preliminary Data Sheet Symbol VCES VCGR VGES VGEM IC25 IC110 ICM SSOA (RBSOA) PC TJ TJM Tstg Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10 s Md FC Weight Mounting torque (TO-247, TO-264) Mounting force (PLUS247) Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGE = 1 MΩ Continuous Tran.

IXGH50N90B2D1 Features

* High frequency IGBT High current handling capability MOS Gate turn-on - drive simplicity Applications PFC circuits Uninterruptible power supplies (UPS) Switched-mode and resonant-mode power supplies AC motor speed control DC servo and robot drives DC choppers Advantages High power density Very fast
