IXGH50N60B - HiPerFAST IGBT

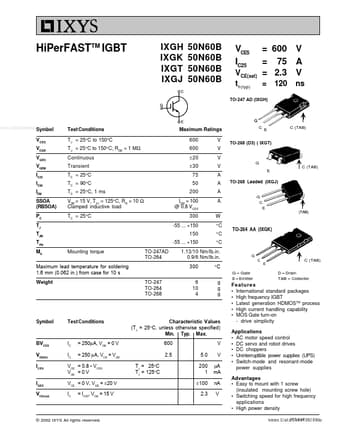

HiPerFASTTM IGBT IXGH IXGK IXGT IXGJ 50N60B 50N60B 50N60B 50N60B VCES IC25 VCE(sat) tfi(typ) = 120 TO-247 AD (IXGH) = 600 = 75 = 2.3 V A V ns www.DataSheet4U.com Symbol Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGE = 1 MΩ Continuous Transient TC = 25°C TC = 90°C TC = 25°C, 1 ms VGE = 15 V, TVJ = 125°C, RG = 10 Ω Clamped inductive load TC = 25°C Maximum Ratings 600 600 ± 20 ± 30 75 50 200 ICM = 100 @ 0.8 VCES 300 -55 +150 150 -55 +150 V V V V A A A A W °C °C °C G C E C

IXGH50N60B Features

* International standard packages

* High frequency IGBT

* Latest generation HDMOSTM process

* High current handling capability

* MOS Gate turn-on - drive simplicity Applications

* AC motor speed control

* DC servo and robot drives

* DC
